Railway signalling
BAL, PRCI and BAPR installations exposed to vandalism.
Engineered in Europe
Built for the World
+44 (0) 20 4538 9847
info@aliastradinguk.com
7-15 Greatorex Street, London, E1 5NF
4h
Installed, no traffic stop
Ø25
mm hardened locking bars
C5M
Corrosion class
3 mm
Inner door sheet
Product Overview

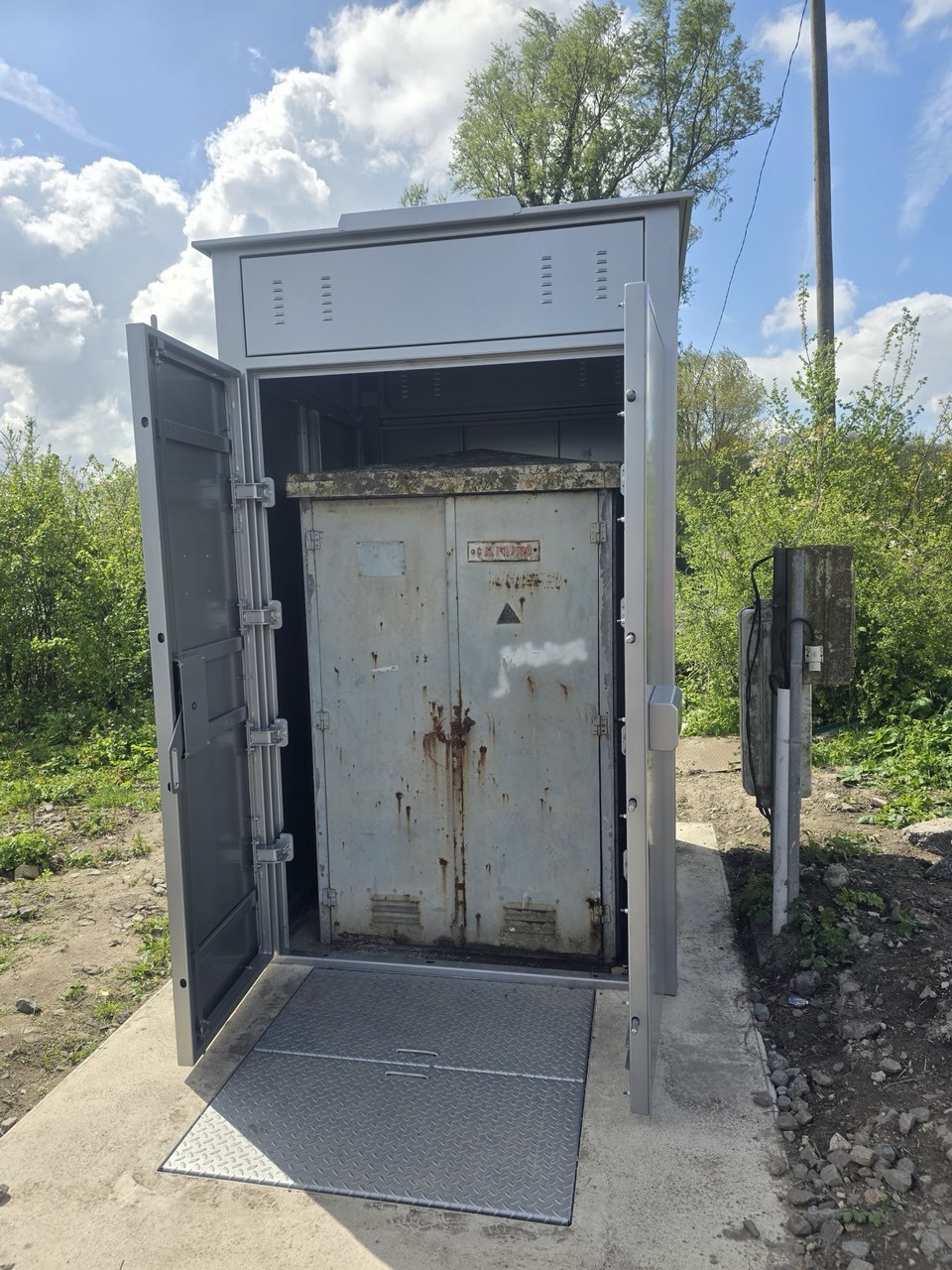

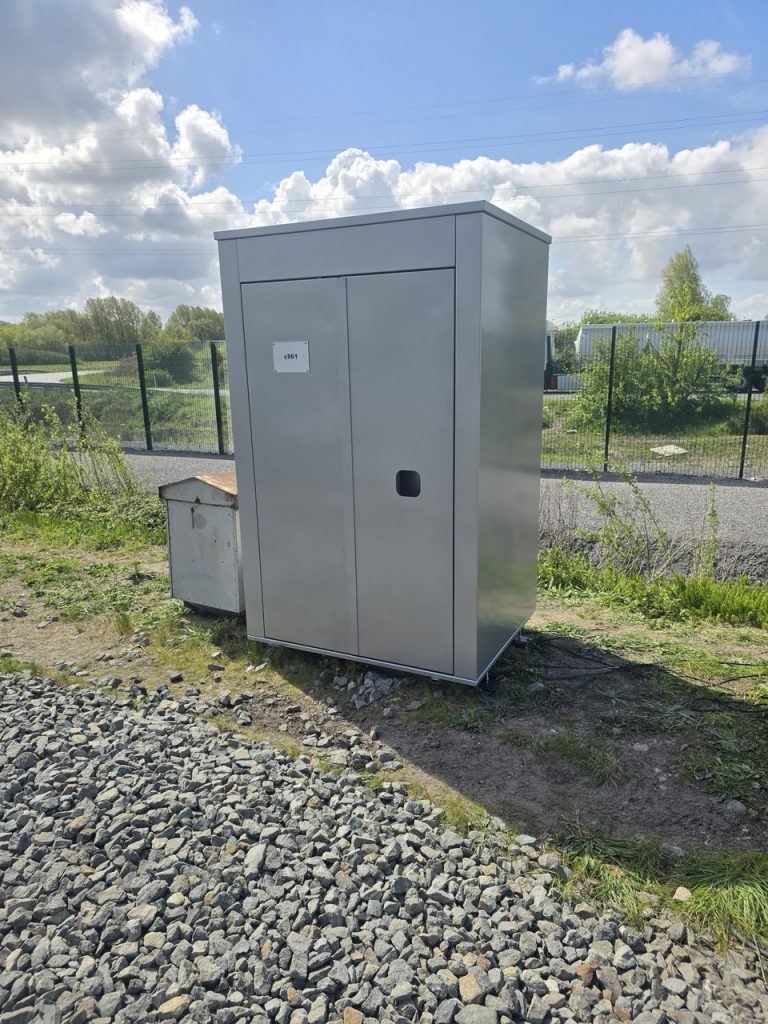

Fitted over the cabinet you already have
SafeBox AV is a highly secure technical cabinet built on a reinforced welded steel structure. It combines robustness, durability, discretion and ease of maintenance while integrating cleanly into the site.
The secure module is designed to be installed over an existing cabinet, reinforcing its protection without major infrastructure modification. It suits high-risk environments, railway networks, urban areas and isolated zones, that need enhanced protection for signalling, telecom, automation or power equipment.
01
Reinforced welded galvanised structure
Strength, vandal resistance and a long service life from a hot-dip galvanised welded assembly.
02
4-point hardened steel lock
Ø25 mm hardened bars close the door on four points for enhanced anti-intrusion security.
03
Invisible hinges
Four concealed hinges per leaf prevent removal and keep the enclosure discreet.
04
No visible assembly
No exterior-accessible screws or bolts, so there is nothing to attack from outside.
05
C5M treatment
Double primer and powder-coated finish for resistance in aggressive outdoor environments.
06
Easy maintenance
Designed for disassembly, so major interventions are possible without weakening the structure.
Engineering Detail
Built to defeat the failure modes
Overclad installation
Installed over the existing cabinet, reinforcing protection without civil works.
4-point locking
Ø25 mm hardened steel bars with a customisable internal opening device.
Concealed hinges
Four invisible hinges per leaf, no external assembly points to lever.
Welded steel frame
80 × 80 mm steel tubes, 3 mm thick, hot-dip galvanised as one assembly.
Matched ventilation
Ventilation openings reproduced on the doors where the original enclosure requires them.
Designed for disassembly
Removable for major maintenance without cutting or weakening the structure.
Technical Specification
SafeBox AV data sheet
Reinforced welded steel structure
| Panels | Galvanised sheet metal |
| Side and rear panels | 2.5 mm thickness |
| Inner door panel | 3 mm thickness |
| Frame | 80 × 80 mm steel tubes, 3 mm thick |
| Assembly | Hot-dip galvanised welded assembly |
| Surface treatment | C5M quality for aggressive environments |
| Finish | Double primer and powder-coated |
Anti-intrusion security
| Locking | 4-point system with Ø25 mm hardened steel bars |
| External fixings | No visible assembly elements |
| Hinges | Invisible, four per leaf, removal-resistant |
| Opening device | Customisable internally, submitted for ergonomic approval |
Integration and maintenance
| Installation | Four hours without traffic disruption |
| Maintenance | Designed for disassembly for major interventions |
| Fixings | No exterior-accessible screws or bolts |
| Ventilation | Openings reproduced on the doors if required |
| Foundation | Existing slabs reused or extended, plans approved before work |
Where It Is Used
Applications
02
Telecom and sensor sites
Local stations carrying equipment worth stealing.
03
Electrical and automation
Sensitive networks that cannot tolerate forced entry.
04
High-risk locations
Urban and isolated areas at risk of damage or theft.
Specify SafeBox AV on your next renewal
Send us the site constraints and existing enclosure dimensions. We return a configuration, a slab plan and an installation window.
